Alliance Window Systems
New Windows: Improving Your Lifestyle

Alliance New Construction Vinyl Windows are specifically designed to meet the discerning needs of architects, builders, homeowners, and the changing needs of the residential building industry. The result is a high-performance series of vinyl windows that feature aesthetically integrated window styles, strength and durability.


StyleOptions
Energy
Performance
Warranty
Style Options

Windgate New Construction Window Systems

  • Single-hung, double-hung, glider and fixed windows come with a doublewall, integral J channel designed into the frame, eliminating the cost of an add-on J channel while providing a pleasing beveled exterior look
  • Glider models feature a lift-out sash with heavy-duty brass rollers, allowing for even large sashes to glide easily without tipping or sticking
  • Casements feature sashes that open completely, windows can be cleaned easily from inside your home. Multi-Point Locking system locks sash at multiple points, for the utmost security
  • Companion awning models available
  • Full range of geometric shapes and transoms provide a wide range of architectural choices
  • Full line of 2-panel and 3-panel sliding patio doors in both standard and custom sizes

Single Hung

One vertically sliding lower sash that tilts in for cleaning and one fixed upper glass that does not slide or tilt.

Windgate Single Hung Features:

  • Cam Lock action draws sashes closer together for positive lock.
  • Interlocking Meeting Rail: Integral interlock provides additional security.
  • Heavy walled PVC framing acts as a natural insulator
  • Closed cell compression seal at sloped sill resists air and water penetration
  • Fin-Seal weatherstripping at sill further reduces air infiltration
  • 3/4? Insulating glass provides optimum energy efficiency
  • Dual hollows at lift rail add strength and insulation
  • Warm edge low conductance spacer resists energy flow through the edge of glass
  • Rigid leg on sill prevents screen rattle even on windy days

Optional Features:

  • InnovativE high-performance glass utilizes Low-E coating specifically engineered for local requirements

Twin Vent Slider

Two horizontally sliding sash that lift out to the inside for cleaning.

Twin Vent Slider Features:

  • Cam Lock action draws sashes closer together for positive lock.
  • Interlocking Meeting Rail: Integral interlock provides additional security.
  • Heavy walled PVC framing acts as a natural insulator
  • 3/4? Insulating glass provides optimum energy efficiency
  • Warm edge low conductance spacer resists energy flow through the edge of glass

Optional Features:

  • InnovativE high-performance glass utilizes Low-E coating specifically engineered for local requirements

NOTE: Full 3-1/4? jamb depth chambered frame for maximum structural integrity. Comes with a double-wall, integral J channel designed into the frame, eliminating the cost of an add-on J channel while providing a pleasing beveled exterior look.


Single Vent Slider

One horizontally sliding sash that lifts out to the inside for cleaning and one fixed glass that does not slide or lift out to the inside.

Single Vent Slider Features:

  • Cam Lock action draws sashes closer together for positive lock.
  • Interlocking Meeting Rail: Integral interlock provides additional security.
  • Heavy walled PVC framing acts as a natural insulator
  • 3/4? Insulating glass provides optimum energy efficiency
  • Warm edge low conductance spacer resists energy flow through the edge of glass

Optional Features:

  • InnovativE high-performance glass utilizes Low-E coating specifically engineered for local requirements

NOTE: Full 3-1/4? jamb depth chambered frame for maximum structural integrity. Comes with a double-wall, integral J channel designed into the frame, eliminating the cost of an add-on J channel while providing a pleasing beveled exterior look.


Windgate Casement Window Features:

  • Sash opens completely, so windows can be cleaned easily from inside your home
  • All components are corrosion resistant, providing years of trouble-free performance
  • Multi-Point Locking System locks sash at three points for utmost security
  • Three layers of weatherstripping assure effective barrier to air and water penetration
  • Top rated hardware system allows even the largest casements to be effortlessly and smoothly operated
  • Full 3-1/4? jamb depth chambered frame for maximum structural integrity
  • Specially designed Airtight Seal: Cuts off the maximum amount of air flow while increasing tightness.
  • Heavy Wall / Reinforced Construction: Allows for slim line look while ensuring maximum strength and durability.
  • Low Profile Curved Lock: Lies flat out of the way of window treatments
  • Low Torque Operator: Crank requires 33% less operating force. Fold down handle with nesting cover available.
  • Airtight Operator Cover

Windgate Bay/Bow Window Features:

All of our high quality bay and bow windows come with features and benefits of other Alliance Window Systems models. Available with our energy efficient InnovativE insulating glass package.

Architectural beauty is increased by our minimal amount of exposed caulking and even sight line to maximize the external appearance.

  • Adjustable Suspension System: Allows for maximum support and precision adjustment
  • Insulated Mullions: Minimize cold spots and drafts
  • Insulated Head and Seatboard: Greater resistance to cold and condensation. Stainable grade wood veneer
  • Warm edge Technology: Non-conductive spacer provides barrier to heat transfer in insulating glass unit
  • Weatherproof Vinyl Capping System: Maximum weather protection and minimal maintenance. Melamine laminate to exterior and continuous pre-capping

Energy Efficiency

InnovativE

Insulating glass package combines low emissivity (Low-E) glass with a warm edge spacer to optimize the balance between radiant heat loss, passive solar heat gain and visible light transmittance.

Your Invisible Barrier

When you consider energy efficiency, perhaps the most critical part of any window is the insulating glass system. It only makes sense: the glass has the largest surface area.

Windows Can Help

To understand how windows can help, you must first understand that energy is lost through windows in three major ways: conduction, convection and radiation.

Conduction

The framing of all Alliance windows is made from vinyl, a natural insulator. To prevent energy loss through conduction, all insulated glass units utilize Duralite warm edge technology. Using a low-conductance spacer, this method assures maximum resistance to energy flow.

Convection

Energy can also be lost through natural convection currents that can form within the insulating glass. Thats why Alliance InnovativE glass is 3/4? thick, shown by government testing to be the optimum dimension to prevent these convection currents.

Radiation

Radiation occurs when long wave heat energy moves toward cold areas.

The most effective barrier to radiation is an optimal special Low-E coating, a standard part of our InnovativE glass package.

This special coating actually reflects the long wave radiation back to its source.

This is important to understand, as radiation affects energy consumption, no matter what part of the country you call home.

Solar Gain vs. Heat Loss

The concerns of homeowners in the North are quite different than those in the South.

In the North, where heating is a concern, glass must allow maximum solar gain, while preventing heat loss.

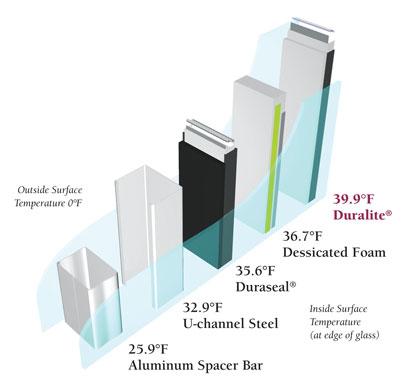

Spacer Performance

The Windgate Spacer Performance

Duralite spacers are the best spacers in comparison testing with other commonly used insulated glass systems. Duralite spacers yield a lower window U-factor, up to 0.03 over other less efficient systems. And that means more comfort and energy savings for you.

Condensation Resistance: No spacer system can eliminate condensation, but Duralite reduces conductivity by 50% over other warm edge spacers. Reducing conductivity also reduces condensation.

Warranty

The Windgate Warranty

All of our products are covered by the
Alliance AssurancePlus Lifetime Warranty
