Verticable Series

Its Your View - Enjoy it with Westbury VertiCable (Style C80) VertiCable offers contemporary vertical cables and balusters providing an architectural style and virtually unobstructed views. VertiCable was recently revised to provide added strength and durability (patent pending). Custom AAMA 2604 & 2605 colors are available as a special order.


Railing Heights: 36", 42"
Railing Lengths: 4', 5, 6, 7', and 8'(7' & 8' available in 36" height only)
Stair Rail Lengths: All stair rails are custom ordered
Post Dimensions: 2" Residential Post (.090" Wall); 2 1/2" Residential Post (.125 Wall); 3" Residential Post (.095 Wall); 2" Heavy Duty Post (.093" Wall); 2-1/2" Power Post (.125" Wall); 4" Smooth Post (.125" Wall); 4" Deco Post (.090" Wall); 6" Deco Post (.090" Wall), and 6" Smooth Post (.110 Wall)
Cable: 1/8" Stainless Steel (316 Marine Grade)
Baluster: 5/8" Round
Cable Spacing: 3 Center to Center (for Cable Rail Sections)
Top Rail: 1 3/4 w (.090) x 1 3/8 t (.085)
Bottom Rail: 1 3/4 w (.125) x 1 1/4 t (.125)
Bottom Rail Support: 7' and 8'

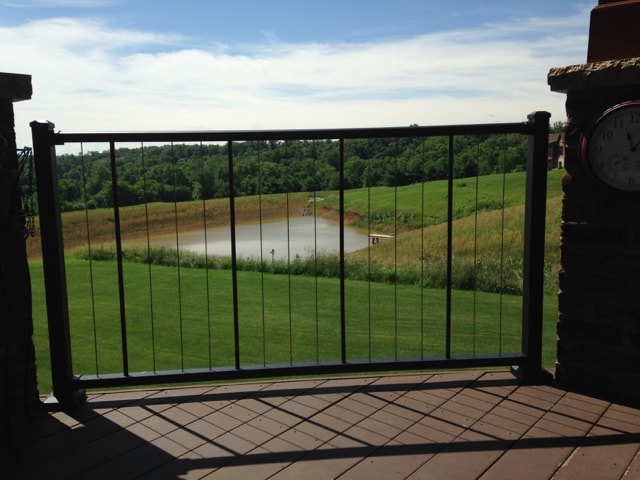

Gates: VertiCable Gates available in 36", 48", and 60" widths
View Our Warranty:
Lifetime Limited Warranty
